What is the Working Principle of an Automatic Filling and Sealing Machine?
The automatic filling and sealing machine is one of the most crucial pieces of equipment for improving production efficiency and ensuring consistency in the production of the product. It can automatically fill liquids, sauces, or semi-solid products into containers and complete the sealing process to minimize human error and potential contamination. Whether it’s jam, tomato sauce, yogurt, or other condiments, with these machines, production is fast and precise.
1. Basic Principle of an Automatic Filling and Sealing Machine
Automatic Container Feeding and Positioning
The operation of an automatic filling and sealing machine starts with the automatic feeding of containers. The empty cups, bottles, or other containers are delivered into a positioning slot by conveyor belts or chains and precisely fixed in their position. Proper positioning can keep each container stable during the course of filling and sealing, thus assuring neatness and avoiding waste. The stability and precision of the feeding system directly affect production speed and line efficiency.
Precision Filling Structure
It fills by means of a piston-type, screw-type, gravity-type, or pneumatic pump filling method, according to characteristics such as the product.
- Piston Filling: In this category, flow is controlled by the piston’s backward and forward movement; suitable for high-viscosity products like tomato sauce or honey.
- Screw-type Filling: Ideal for products of high viscosity or small particulates.
- Gravity Fill: This method uses gravity for filling low-viscosity liquids like beverages or juices.
- Accurately filling can assure that each container holds the correct volume, reduces waste in raw materials, and enhances production efficiency.
- Automatic Sealing Technology
Sealing guarantees the product’s tightness, prevents leakages, and prolongs its life. Common sealing methods include heat sealing, capping, or film sealing. Heat sealing involves the application of heat to bond the sealing film with the container, forming a secure closure, while capping relies on mechanical pressure. The stability and precision of the sealing process has a direct effect on the quality, appearance, and consumer trust in the product.
See also: How to Choose the Right Aluminum Doors for Commercial Buildings
2. Major Components of an Automatic Filling and Sealing Machine
Conveyor System
The conveyor system efficiently moves the containers, products, and sealing materials within the machine. Common types include chain conveyors, roller conveyors, and flat-plate conveyors. For smooth workflow without production bottlenecks, accurate and stable conveyors are extremely crucial.
Control System and User Interface
Modern filling and sealing machines are fully installed with PLC control and touch-screen operating interface to intuitively set the volume filled, temperature of sealing, and speed of production while monitoring the real-time status of production. Alarm functions warn operators in case of feeding or sealing issues for prompt actions that reduce downtime, hence manage overall production with much efficiency.
Power Unit
Energy for the movement of machines is provided by the power unit; it includes motors, cylinders, and hydraulic systems. In coordination, motors drive conveyor chains, filling pistons, and sealing mechanisms for the assurance of synchronization in the operation at all stages. Cylinders may come into play in pushing films or containers for efficient and stable sealing.
3. ZONESUN Fully Automatic Plastic Filling and Sealing Machine
ZONESUN fully automatic plastic tomato sauce cup filling and sealing machine is the regular model of automatic filling and sealing machines specially for the food industry. The machine automatically feeds the plastic cups, pre-cut film lids, fills the tomato sauce accurately, heats and seals it, and discharges automatically. The integral design saves space on the floor and can be designed according to the requirement for production speed and capacity.
Workflow
Feeding: The empty plastic cups are fed through a chain conveyor into the positioning slots, with the pre-cut film automatically positioned for sealing.
- Filling: The piston filling system dispenses the correct amount of tomato sauce into each cup in accordance with the preset settings.

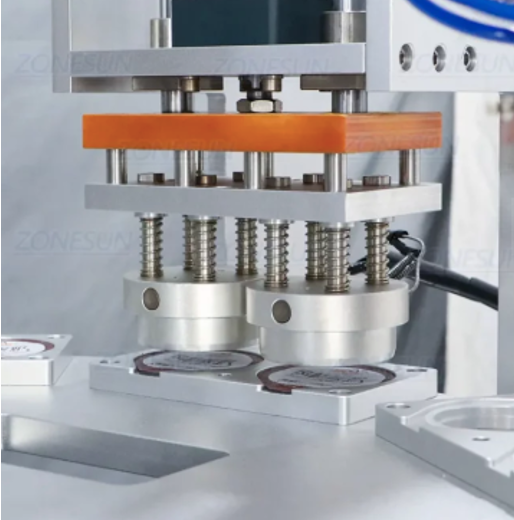

- Sealing: The film covers the cup, and the heat sealing unit bonds the film to the container, making a tight seal.
- Discharge: The sealed cups are moved to the discharge area for packaging or inspection.
This automated workflow requires very little human intervention and ensures proper filling, reliable sealing, and consistent presentation of the product.
4. Applications of Automatic Filling and Sealing Machines within Food Industry
Jam and Condiment Filling
These automatic filling and sealing machines allow for accurate filling and steady sealing in jams, tomato sauce, salad dressings, and other high-viscosity condiments. The technology of piston filling and heat sealing ensures a consistent volume for each package with an attractive and leak-proof seal that is good for storage and transport.
Beverage and Liquid Product Packaging
Low-viscosity liquids, like juices, beverages, and liquid seasonings, are effectively filled by gravity or pneumatic pump systems. Automatic sealing secures the tightness of containers, ensures against spills and contamination, and prolongs shelf life.
Automation and Efficiency Enhancement
Fully automatic filling and sealing machines reduce the need for manual labor while sustaining continuous production. They can be integrated with vision inspection systems to inspect fill levels and seal quality in real time and automatically remove defective products. This optimizes production, reduces waste, and reduces costs, providing a competitive advantage to food manufacturers.
5. Conclusion
In a nutshell, the automatic filling and sealing machine enables fully automated production by integrating automatic feeding, accurate filling, reliable sealing, and efficient discharging. The ZONESUN fully automatic plastic tomato sauce cup filling and sealing machine illustrates how an integrated design, customizable functions, and intelligent control system can support high-efficiency production for jams, sauces, and other condiments. Looking ahead to a future driven by automation and smart technologies, the role of an automatic filling and sealing machine will be irreplaceable in enhancing production efficiency, assuring product quality, and rationalizing food manufacturing processes.
